Higher production capacity,better final product particle size
Replace crushing cavity if you need medium,fine,and super fine product
Perfect grain composition and cubic particle product
Can be installed on the steel structure or concrete foundation in the workshop or open area
Multiple protection,avoid accidents and damage caused by human incorrect operation
XHP Series Hydraulic Cone Crusher
ZX compound cone crusher
Symons Cone Crusher
DP Single Cone Crusher

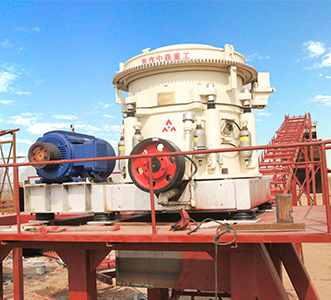

XHP series high efficiency Hydraulic Cone Crusher is a world-level cone crusher developed from the up-to-minute technology of America. The cone crusher not only improves the production capacity and crushing efficiency, but also widens the applying area, from limestone to basalt, from stone production to various ore crushing. It has a second-to-non crushing performance in the work of medium-size crushing, fine crushing and super fine crushing. The crusher is the improved type of spring cone crusher and can be used to replace ordinary hydraulic cone crusher .
Big raw river stone will be fed...Learn More
Big raw river stone will be fed into jaw crusher for primary crushing by vibrating feeder. After primary crushing, the material will be transferred to secondary crushing machine like Hard Material crusher for further crushing. Usually, we will equip the river stone crushing & screening plant with multi-deck vibrating screen.
250 t/h
River Stone
<800mm
0-5mm, 5-10mm,10-20mm,20-30mm,30-80mm
25-30 days
Highway pavement material,sand and gravel aggregate for high speed passenger railway line, hydropower station
1set ZSW490*110 Vibrating Feeder + 1set PE750*1060 Jaw Crusher + 1sets XHP300 Hydraulic Cone Crusher + 1set 3YK2470 Vibrating Screen + 1set B1000×15mBelt conveyor +1set B1000×18mBelt conveyor +1set B1000×25mBelt conveyor +1set B800×32mBelt conveyor +1set B500×15mBelt conveyor + Electronic control system
Big raw river stone will be fed into jaw crusher for primary crushing by vibrating feeder. After primary crushing, the material will be transferred to secondary crushing machine like Hard Material crusher for further crushing. Usually, we will equip the river stone crushing & screening plant with multi-deck vibrating screen. The vibrating screen is a key equipment to sieve the crushed stones into different grades. The crushed stone that meet the demands will be transported to the stockpile, the other will be sent to secondary crusher for fineness crushing. In the plant, raw river stone will probably be fed into jaw crusher for primary crushing by vibrating feeder. After primary crushing, the material will probably be transferred to secondary crushing equipment like hydraulic cone crusher for further crushing.
250-350 tph dolomite crushing plant...Learn More
First of all bulk materials from large silos were uniform delivery by ZSW600×130 feeder to PE900×1200 jaw crusher
250-350 t/h
dolomite
<800mm
0-5mm, 5-10mm,10-20mm,20-30mm,30-80mm
25-30 days
Highway pavement material,sand and gravel aggregate for high speed passenger railway line, hydropower station
1set ZSW490*110 Vibrating Feeder + 1set PE750*1060 Jaw Crusher + 1sets XHP300 Hydraulic Cone Crusher + 1set 3YK2470 Vibrating Screen + 1set B1000×15mBelt conveyor +1set B1000×18mBelt conveyor +1set B1000×25mBelt conveyor +1set B800×32mBelt conveyor +1set B500×15mBelt conveyor + Electronic control system
First of all bulk materials from large silos were uniform delivery by ZSW600×130 feeder to PE900×1200 jaw crusher, after jaw crusher primary crushing, they were transported by belt conveyor to transfer hopper, transit silo stone by the inertial vibration feeder to the conveyor belt to symons cone crusher and large silos, respectively, by sharing large silos inertial vibration feeder evenly sent to symons cone crusher for secondary crushing, the materials after secondary crushing were delivery by a belt conveyor to 3YK2460 circular vibrating screening process, eventually forming 0-5mm, 5-10mm, 10-20mm, 20-30mm, 30-80mm five finished product which were transported by belt conveyor to the finished product stockpiles.
350tph granite crushing production line...Learn More
XHP300 hydraulic cone crusher, its' second-to-non crushing performance make customer save the cost and the crushing line makes the customers get more cubic shape material,
300-350 t/h
granite
800mm
0-5, 5-12,12-21mm
25-30 days
Highway pavement material,sand and gravel aggregate for high speed passenger railway line, hydropower station
ZSW1300x6000 vibrating feeder+ PE900x1200 jaw crusher+ XHP300x 2sets hydraulic cone crusher+ belt conveyor+ 3YK2460x2sets circular vibrating screen
This is a stationary three-stages crushing plant, including ZSW1300x6000 vibrating feeder+ PE900x1200 jaw crusher+ XHP300 hydraulic cone crusher 2sets+ belt conveyor+ 3YK2460 circular vibrating screen 2sets. The design capacity is 300-350t/h, with the function of crushing, screening and reshaping. The ADVANTAGE of this line is: XHP300 hydraulic cone crusher, its' second-to-non crushing performance make customer save the cost and the crushing line makes the customers get more cubic shape material, which can sell pretty good price in market. The 350t/h granite crushing production line wins good reputation from Peru customers depend on its good quality, reliable operation and advanced technology. The products manufactured by Zhongxin has become the mainstream brand products and the most trusted brand products.
Stone Crushing Plant...Learn More
The complete plant includes Vibrating feeder GZD1300x4900, European type jaw crusher , European type Impact crusher two sets, Vibrating screen 3YK2160 two sets, belt conveyers, etc. The plant crush the limestone, with maximum feeding size 900mm, output size 0-10mm, 10-20mm, 20-40mm, capacity 400TPH. The final products used for road and building construction.
100tph Mobile Crusher Plant...Learn More
Zhongxin stationary type construction waste processing equipment sold to Russia which has been put into operation and formed a stable and efficient production line.
100-120t/h
500mm
30-45 days
Russia
Construction waste, Highway pavement material, sand and gravel aggregate for high speed passenger railway line, hydropower station
ZSW1300x6000 vibrating feeder+ PE900x1200 jaw crusher+ XHP300x 2sets hydraulic cone crusher+ belt conveyor+ 3YK2460x2sets circular vibrating screen
Zhongxin stationary type construction waste processing equipment sold to Russia which has been put into operation and formed a stable and efficient production line. The stationary type construction waste processing equipment adopts a new technology based on energy saving and environmental protection, not only improving the quality of the project but also reducing urban environmental pollution, which achieves the combination of economic benefits and environmental protection. The inorganic mixture generated by construction waste can meet the intensity requirements of road base materials. Processing object: construction waste Application range: road water-stabilized layer, roadbed aggregate, road filling, diking, etc. Main process: feeding——crushing——deironing——screening secondary crushing——double screening——acceptable material Main equipment: vibrating feeder——impact crusher——circular vibrating screen Assembling form of equipment: mobile type Processing volume: 100-120t/h
250tph Granite Crushing Production Line...Learn More
The 250t/h Granite crushing production line wins good reputation from Ethiopia customers depend on its good quality, reliable operation and advanced technology.
250-300 t/h
granite
800mm
0-5, 5-12,12-21mm
30-45 days
Highway pavement material,sand and gravel aggregate for high speed passenger railway line, hydropower station
ZSW series vibrating feeder + PE series jaw crusher + PY series cone crusher + Belt conveyor + YK series circular vibrating screen; ZSW series vibrating feeder + PE series jaw crusher + PF series impact crusher + VSI series vertical shaft impact crusher + Belt conveyor + YK series circular vibrating screen.
The 250t/h Granite crushing production line applied in Ethiopia is mainly consisted of vibrating feeder, jaw crusher, cone crusher, vibrating screen, conveyor belt and centralized control equipment etc. This stone production line has the features of small floor space, high investment economy benefit, high quality crushing materials, low powder productivity etc. The operation procedure is reasonable: first, raw material is crushed by jaw crusher, it is called coarse crushing, then the coarse aggregate is conveyed to the cone crusher by conveyor belt to be crushed again. The crushed material is screened into three kind size of sand, stone and bigger stones, and then back to the cone crusher be crushed again. In order to make sure the discharging is unobstructed, We provided advanced electric control operating system for customers. The 250t/h Granite crushing production line wins good reputation from Ethiopia customers depend on its good quality, reliable operation and advanced technology. The products manufactured by Zhongxin has become the mainstream brand products and the most trusted brand products.
50tph Pebble Sand Making Production Line...Learn More
Regarding of detail condition, two kinds of techniques are usually adopted in producing manufactured sand
30-50t/h
400mm
30-45 days
Highway, high railway, chemistry, construction, mining
ZSW series vibrating feeder + PE series jaw crusher + VSI series vertical shaft impact crusher + Belt conveyor + YK series circular vibrating screen. 50t/h cobble sand making production line in India Regarding of detail condition, two kinds of techniques are usually adopted in producing manufactured sand, dry way and wet way. Both methods can produce high quality manufactured sand as concrete aggregate. Especially, the dry way can produce not only the manufactured sand used in road surface, but also the powder used in asphalt concrete. Features and Advantages of Sand Production Line: [1]High degree of automation; [2]Low operation cost with high rate of crushing; [3]High Capacity with low pollution; [4]Easy maintenance [5]The manufacture sand meets the national standard of building sand. It is regular, cubic shape and reasonable gradation of sand. The configuration of equipments of manufactured sand is mainly based on customers requirements on dimension of finished sand, capacity and the purpose of the sand.
100tph River Gravel Sand Process...Learn More
Stone from the feeder evenly sent to jaw crusher for coarse broken, rough broken material sent after fine crushing jaw crusher again, after crushing the material
Stone from the feeder evenly sent to jaw crusher for coarse broken, rough broken material sent after fine crushing jaw crusher again, after crushing the material Stone from the feeder evenly sent to Jaw crusher for coarse broken, rough broken material sent after fine crushing Jaw crusher again, after crushing the material fed by belt conveyor vibrating screen for screening, meet the stars of the stone crusher feed into the crusher were sand, return does not meet the requirements of the fine jaw crusher again broken out from the sand material was, returning to the shaker re-screening, screening full separation of the main requirements of the sand into the sand washing machine cleaning, cleaning finished transported by conveyor belt is finished, the Lord dissatisfied gravel mixed material, crushed into sand again, the final form of the production line 2 off closed cycle, according to the needs of users can also be a variety of configurations.
Customers from more than 140 countries and regions choose ZHONGXIN XHP Cone Crusher in the past year.
From freezing cold Russia to burning hot equatorial regions, from -35 ℃ to 40 ℃, ZHONGXIN XHP Cone Crusher can work stably and normally, fully adaptable to the extreme environment and meeting various customers personalized needs.
Applications:
Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water Conservancy
No matter what your application or industry, ZHONGXIN has the right cone crusher to help you.
